Thermal Performance Specifications: OEM Drinkware Testing Standards

Q: 1. Why do Tumblers/Travel Mugs have lower thermal retention than Narrow-Mouth Bottles?

Heat transfer primarily occurs through the opening/lid via convection and conduction. Tumblers (e.g., Stanley or YETI types) feature wide mouths and lids with straw holes or magnetic sliders, creating significant thermal bridges. Conversely, Narrow-Mouth Thermos Bottles use thick silicone-sealed screw caps, minimizing the exposed surface area. A 40oz tumbler may retain 60°C for 4-6 hours, whereas a 32oz narrow-mouth flask can maintain 60°C for over 12 hours.

Q: 2. What is "Copper Lining" and how does it improve thermal performance?

Standard double-wall vacuum insulation blocks conduction and convection, but thermal radiation can still pass through the vacuum gap. By applying a microscopic layer of copper plating to the exterior of the inner stainless steel wall, we create a highly reflective surface (low emissivity). This 'thermal mirror' reflects infrared heat radiation back into the liquid, boosting hot and cold retention times by 10% to 15%.

Q: 3. How does Ecoway test for vacuum insulation failure during mass production?

Low-end factories only use basic water baths. At Ecoway, we utilize 100% Online Electromagnetic Thermal Detection. After the vessels leave the automated 570°C+ unleaded vacuum brazing furnace, they pass directly through a synchronized sensor tunnel. If the dual-wall vacuum layer has failed or cracked, the steel boundaries will immediately conduct heat; our high-resolution infrared imaging matrix instantly flags this thermal anomaly, automatically ejecting the defective profile from the automated line.

Q: 4. Does applying a Ceramic Inner Coating affect the hot/cold insulation time?

No. The ultra-thin sol-gel ceramic lining, used to secure a 100% metallic-free and odor-less experience, undergoes an intense 300+°C curing heat reaction to bond permanently with the interior steel. Because its structural mass thickness is virtually microscopic, it does not bridge the 10⁻⁴ Pa vacuum insulation boundaries or alter the thermal decay constants established under JIS S 2053 specifications. Furthermore, engineering this alongside a reinforced 0.65mm+ heavy outer shell completely eliminates micro-structural deflection, maximizing heat block lifetime.

Q: 5. How does Lead-Free Glass Frit Sealing impact thermal stability?

Traditional vacuum sealing uses a lead pellet at the bottom of the bottle, which poses a massive California Prop 65 compliance risk. Ecoway exclusively uses Lead-Free Glass Frit Technology. This melts at temperatures exceeding 570°C to seal the exhaust hole. Not only is it 100% non-toxic, but the glass seal is physically harder and more stable than lead solder, providing superior lifetime vacuum retention against impacts and drops.

Executive Briefing: Thermal QC Standards

Ecoway defines its rigid B2B quality metrics by standardizing all OEM drinkware vacuum insulation testing against official GB/T 29606-2013, JIS S 2053, and European EN 12546-1 protocols. Engineered for global procurement and R&D teams, our high-volume production plant implements an extreme 10⁻⁴ Pa high-vacuum chamber depth combined with an advanced 570°C+ lead-free thermal fusion process, eliminating the 500°C - 540°C toxic lead-contamination risks common in traditional foundries. Enhanced by specialized inner-wall copper lining arrays and structurally reinforced 0.60mm - 1.00mm outer shell configurations, our architecture completely withstands microscopic deflection warping and suppresses long-term metal outgassing, securing a lifetime vacuum failure rate of <0.1% strictly validated via 100% inline automated electromagnetic scanning.

🔥 Hot Benchmark (0.5L) Utilizing 0.40mm - 0.50mm standard steel walls, liquids starting at 95°C must retain ≥ 65°C after 6 hours at 20°C ambient.
❄️ Cold Benchmark (0.5L) Utilizing 0.20mm - 0.30mm ultra-light steel walls, liquids starting at 4°C must retain ≤ 8°C after 6 hours at 20°C ambient.
🛡️ Lead-Free Sealing Contrasting standard 500°C - 540°C toxic lead seals, Ecoway utilizes 570°C+ high-temperature glass frit fusion baked over a strict 6-hour thermal profile for permanent non-toxic vacuum retention.
✨ Copper Lining Tech An automated inner-wall copper plating layer forms a thermodynamic triple-wall barrier reflecting infrared radiation, boosting hot and cold thermal retention efficiency by 10% to 15%.
🧱 Heavy Outer Shell Engineered with 0.60mm - 1.00mm heavy-duty walls. Scaling the outer casing above the 0.65mm threshold drastically enhances thermal retention times by preventing lattice structural fatigue under extreme vacuum pressure loads.

Establishing precise thermal retention thresholds is a critical parameter within the integrated OEM drinkware development process. These physical specifications act as the unified engineering benchmark for all double-wall vacuum-insulated products manufactured at the Ecoway Houseware plant, ensuring every contract volume batch meets strict international retail expectations for hot and cold thermodynamic performance.

Testing Protocol Standard (GB/T 29606-2013 / JIS S 2053)

All thermal retention laboratory evaluations must be conducted according to strict environmental boundaries. Enforcing absolute compliance across these thermodynamic vectors safeguards your brand assets during Pre-Shipment Inspections (PSI) and detailed cross-border China factory verification audits.

Laboratory Thermal Retention Testing Protocols under GB/T 29606-2013 and JIS S 2053 Standards
Test Parameter Standard	Hot Retention Testing Matrix	Cold Retention Testing Matrix
Starting Hot/Cold Temp.	95°C ± 1°C (203°F)	4°C ± 1°C (39.2°F)
Controlled Ambient Temp.	20°C ± 5°C (68°F)	20°C ± 5°C (68°F)
Required Regulatory Output	Minimum Final Temperature Constant (°C)	Maximum Final Temperature Constant (°C)

Industrial laboratory validation setups auditing thermal performance specifications for premium double-wall vacuum insulated steel flasks and travel tumblers at Ecoway factory lines under GB/T 29606-2013 protocols.

Detailed Thermal Retention Benchmarks

Table A: Insulated Thermos Bottle / Vacuum Flask (Full-Seal Cap)

Narrow-mouth profiles are highly recommended for superior thermodynamic deceleration and 100% leak-proof outdoor operations, allowing maximum constant vacuum preservation.

Thermal retention performance specifications for double-wall insulated vacuum flasks across wall thicknesses and volume capacities
Volume Capacity	Wall & Casing Matrix	Time Interval	Hot Retention (Min °C)	Cold Retention (Max °C)	Performance Grade
0.5 L / 17 oz	0.40mm inner / 0.45mm outer standard steel	6 Hours	≥ 65°C after 6 Hours (Ambient 20°C, Initial 95°C)	≤ 8°C after 6 Hours (Ambient 20°C, Initial 4°C)	Standard Premium
0.5 L / 17 oz	0.20mm - 0.30mm ultra-light custom lining	12 Hours	45°C	12°C	Standard Premium
1.0 L / 34 oz	0.45mm inner / 0.50mm outer regular casing	6 Hours	≥ 70°C after 6 Hours (Ambient 20°C, Initial 95°C)	8°C	Industry Benchmark
	0.50mm inner / 0.65mm reinforced rigid shell	12 Hours	50°C	10°C	Industry Benchmark
	0.60mm inner / 1.00mm heavy-duty anti-deflection casing	24 Hours	40°C	15°C	Top-Tier Performance

Table B: Stainless Steel Tumbler / Travel Mug (Easy-Sip Lid)

Note: Thermal retention parameters are structurally lower due to immediate convective heat dissipation through wide-mouth opening push-lids and direct plastic straw mechanism arrays.

Thermal retention benchmarks for stainless steel travel tumblers and coffee mugs
Volume Capacity	Wall & Casing Matrix	Time Interval	Hot Retention (Min °C)	Cold Retention (Max °C)	Performance Grade
0.35 L / 12 oz	0.40mm inner / 0.40mm outer standard cup	3 Hours	50°C	10°C	Commuter/Desk Use
0.35 L / 12 oz	0.40mm inner / 0.45mm outer standard cup	6 Hours	40°C	15°C	Commuter/Desk Use
0.6 L / 20 oz	0.40mm inner / 0.50mm premium outer shell	3 Hours	60°C	≥ 45°C after 6 Hours (Ambient 20°C, Initial 95°C)	Premium Tumbler
0.6 L / 20 oz	0.45mm inner / 0.65mm anti-deformation heavy casing	6 Hours	45°C	12°C	Premium Tumbler

Best Practices for OEM Technical Communication

When detailing project structural requirements during your initial product configuration with Ecoway Houseware engineers, ensuring absolute precision in technical purchase orders prevents long-term component deviations and legal friction:

Reference the Protocol: Explicitly mandate the verification standard within your binding contract document: "Insulation performance verification must follow official GB/T 29606-2013 guidelines."
Specify Exact Casing Thicknesses: Quantify structural boundaries clearly based on target environments: "The bespoke outdoor flask line must incorporate an outer casing thickness ≥ 0.65mm to inhibit vacuum expansion lattice decay and outgassing failures."
Verify Heavy Metal Compliance: Ensure your raw material choice strictly mandates 570°C lead-free glass frit sealing technologies to satisfy global toxicological compliance.

Mandatory QC Inspection Mandates

To secure a zero-defect volume release across heavy-duty commercial deployment, our Yongkang foundries enforce the following internal testing protocols across 100% of manufactured units:

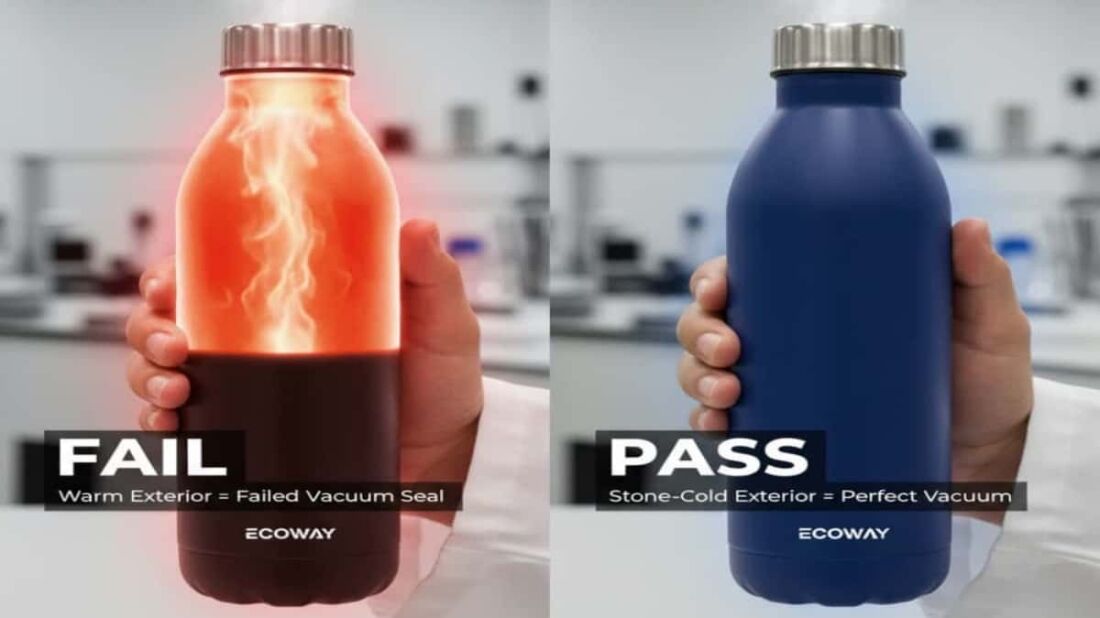

Vacuum Integrity Verification: 100% of finished vessels must pass through our inline automated electromagnetic thermal scanning tunnel. Any outer wall demonstrating immediate heat transfer anomalies is automatically rejected by the line sensors.
Chemical Compliance Certification: All raw metal components and raw Tritan™ copolyesters must clear localized heavy metal migration tests to satisfy strict FDA, LFGB, and California Proposition 65 mandates.
Kinematic Lid Performance: All newly opened custom lid samples must clear a continuous 5-Minute Inversion Pressure Test with Absolute Zero Leakage.

Ready to Scale Your Drinkware Brand?

Connect directly with our automated Yongkang China based production facilities for custom mold engineering, advanced thermal barrier optimization, and global scale logistics.

Start Custom OEM Project Browse Wholesale Catalog

Factory Direct Support • Corporate Response within 12 Hours • sales@ecowayhouseware.com

FAQ: Engineering & Testing Standards for Vacuum Insulated Drinkware

2026 Quality Control (QC) Executive Summary:

Reliable thermal retention is the core metric of premium drinkware. As an ISO9001 foundry, Ecoway tests all vacuum flasks according to GB/T 29606-2013 and JIS S 2053 standards. Our standard 0.5L (17oz) vessels are guaranteed to maintain hot liquids at ≥ 65°C and cold liquids at ≤ 8°C after 6 hours in a 20°C ambient environment. We employ 100% inline electromagnetic thermal detection to ensure a vacuum failure rate of < 0.1%.

1. Why do Tumblers/Travel Mugs have lower thermal retention than Narrow-Mouth Bottles?

Heat transfer primarily occurs through the opening/lid via convection and conduction. Tumblers (e.g., Stanley or YETI types) feature wide mouths and lids with straw holes or magnetic sliders, creating significant thermal bridges. Conversely, Narrow-Mouth Thermos Bottles use thick silicone-sealed screw caps, minimizing the exposed surface area. A 40oz tumbler may retain 60°C for 4-6 hours, whereas a 32oz narrow-mouth flask can maintain 60°C for over 12 hours.

2. What is "Copper Lining" and how does it improve thermal performance?

Standard double-wall vacuum insulation blocks conduction and convection, but thermal radiation can still pass through the vacuum gap. By applying a microscopic layer of copper plating to the exterior of the inner stainless steel wall, we create a highly reflective surface (low emissivity). This 'thermal mirror' reflects infrared heat radiation back into the liquid, boosting hot and cold retention times by 10% to 15%.

3. How does Ecoway test for vacuum insulation failure during mass production?

Low-end factories only use basic water baths. At Ecoway, we utilize 100% Online Electromagnetic Thermal Detection. After the vessels leave the automated 570°C+ unleaded vacuum brazing furnace, they pass directly through a synchronized sensor tunnel. If the dual-wall vacuum layer has failed or cracked, the steel boundaries will immediately conduct heat; our high-resolution infrared imaging matrix instantly flags this thermal anomaly, automatically ejecting the defective profile from the automated line.

4. Does applying a Ceramic Inner Coating affect the hot/cold insulation time?

No. The ultra-thin sol-gel ceramic lining, used to secure a 100% metallic-free and odor-less experience, undergoes an intense 300+°C curing heat reaction to bond permanently with the interior steel. Because its structural mass thickness is virtually microscopic, it does not bridge the 10⁻⁴ Pa vacuum insulation boundaries or alter the thermal decay constants established under JIS S 2053 specifications. Furthermore, engineering this alongside a reinforced 0.65mm+ heavy outer shell completely eliminates micro-structural deflection, maximizing heat block lifetime.

5. How does Lead-Free Glass Frit Sealing impact thermal stability?

Traditional vacuum sealing uses a lead pellet at the bottom of the bottle, which poses a massive California Prop 65 compliance risk. Ecoway exclusively uses Lead-Free Glass Frit Technology. This melts at temperatures exceeding 570°C to seal the exhaust hole. Not only is it 100% non-toxic, but the glass seal is physically harder and more stable than lead solder, providing superior lifetime vacuum retention against impacts and drops.

Verified Technical Expert Biography

Van Huang ISO9001 Fact-Checked Data

All Thermal Performance Specifications, GB/T 29606-2013 testing parameters, and vacuum brazing metrics presented on this page are strictly authored and verified by Van Huang and the Ecoway Quality Control (QC) Team. Leveraging 12+ years of metallurgical testing experience across the specialized Yongkang vacuum vessel plant, our matrix guarantees that every contract volume B2B project eliminates the micro-deflection warping or lattice outgassing degradation of thin boundaries by reinforcing shell metrics above the 0.65mm threshold, exceeding the lifetime thermal limits required by premium retail standards. View verified manufacturing credentials on LinkedIn | Read technical engineering deep-dives on Medium
