What is the technical difference between manufacturing a Yeti tumbler versus a Stanley cup?

The difference is the forming technique. Yeti-style tumblers utilize Deep Drawing to establish a straight-walled interior with a thickness range of 0.60mm - 1.00mm. Stanley-style vessels require 800-ton Tube Hydroforming to achieve tapered bases compatible with automotive cup holders.

How do you prevent ultra-thin 0.20mm inner walls from collapsing during vacuum brazing?

To prevent wall collapse or cavity implosion during high-vacuum processing, manufacturing protocols combine CNC spinning with programmable gradual heating. Spinning thins the midpoint of the liner wall while maintaining base and neck gauge constants, while gradual thermal staging balances pressure distributions during the 10⁻⁴ Pa evacuation.

Why do pure titanium cups often have black weld marks, and how do you fix it?

Titanium reacts with oxygen at thermal fusion thresholds, causing structural embrittlement and surface oxidation markings. Laser welding lines operate inside an argon gas shielded chamber to isolate oxygen and preserve metallurgical properties along the seam boundary.

How does Ecoway ensure your stainless steel cups are 100% Lead-Free?

Manufacturing replaces heavy metal alloys with 570°C high-temperature glass frit vacuum sealing. Thermal fusion of microscopic glass particles establishes a hermetic seal compliant with California Prop 65 and FDA limits.

How does Ecoway prevent vacuum loss in mass production?

Production lines deploy inline automated infrared thermal audit tunnels. Heated air is directed into vessels; units exhibiting thermal conductivity to the outer shell are rejected by infrared sensors, limiting vacuum degradation to a <0.1% threshold.

How do I verify if a factory uses genuine 304/316 steel instead of cheap 201 steel?

Foundries verify composition constants via Positive Material Identification (PMI) spectrometry reports. This testing authenticates specified Chromium (18%) and Nickel (8-10%) percentages, ensuring production isolation from SUS201 specifications.

How do you apply the Ceramic Inner Coating for barista-grade mugs?

Automated high-pressure spray atomization delivers a metallic-free Sol-Gel Ceramic Layer. Thermal curing at parameters exceeding 300°C drives cross-linking with the SUS304 substrate, forming an inert boundary layer that prevents flavor crossover and surface staining.

What makes your lid materials superior to standard plastics?

Lid structures utilize Eastman Tritan™ Copolyester with ±0.05mm injection tolerances to provide impact resistance and chemical purity free from BPA/BPS components. The material preserves clarity after standard commercial washing cycles. Integrated with TPE overmolding, the closure sub-assembly maintains structural seal constants without cracking.

What is the "100-Cycle" Dishwasher Safe Test for powder coating?

To evaluate surface adhesion constants, PFAS-free polyester coatings are cured within a 200°C - 220°C thermal tunnel. Batch samples undergo validation through 100 high-temperature commercial dishwasher testing cycles and ASTM D3359 Grade 5B cross-hatch tape tests to verify resistance to paint delamination or color fading.

How do I verify if my manufacturer uses RCS certified recycled stainless steel?

Procurement verification requires an RCS (Recycled Claim Standard) Transaction Certificate (TC) linked to the specific production lot. Certified foundries issue this documentation to authenticate statements regarding recycled material content.

What is the typical lead time for new molds, prototypes, and mass production?

Whether you start from AI concept prompts, 2D hand sketches, or reference samples, we deliver 3D CAD blueprints in 48 hours and SLA 3D printed functional resin prototypes in 3 - 7 days. Custom CNC steel tooling fabrication spans 30 - 45 days. Mass manufacturing requires 35 - 45 days. *Note: If custom tooling budget or timeline is tight, choose from our 100+ ODM ready-molds for $0 tooling cost fast validation.*

Inside the Factory: How We Manufacture Stainless Steel & Titanium Drinkware

Advanced Metal Forming & Vacuum Insulation Technologies: An Enterprise Production Blueprint

Ecoway Houseware provides the technical blueprint for international brand procurement, product designers, and sourcing managers. Whether starting from AI concept prompts, 2D hand sketches, or physical reference samples, this documentation outlines our automated step-by-step manufacturing engineering lifecycle → from raw material processing of SUS304/316 stainless steel 18/8 and pure Titanium to high-tonnage Deep Drawing and Hydroforming configurations.

Strategic Engineering Note: Our active manufacturing protocols execute the rigorous quality requirements defined in our Master Material Standards Hub, ensuring every vessel exceeds global compliance benchmarks. Save 40%–60% by bypassing trading intermediaries.

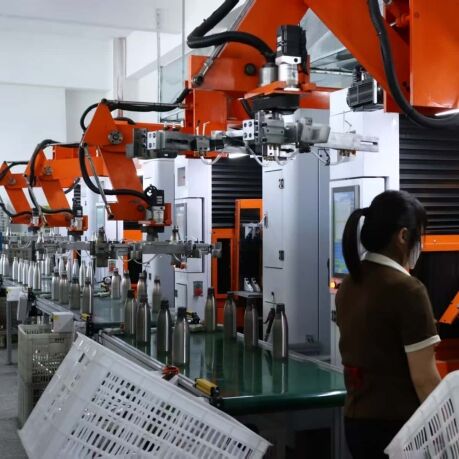

Automated robotic laser welding and manufacturing process of stainless steel water bottles at Ecoway facility

800-TON Hydroforming Force
INFRARED Vacuum QC Line

12+

Years Experience
500K

Monthly Capacity
FDA/CA65

Certified Safe
ISO9001

QA Certified
BSCI

Socially Audited

Industrial Manufacturing Lifecycle Executive Digest

Ecoway defines the industrial drinkware manufacturing lifecycle through a programmatic 9-stage metal-forming and thermodynamic isolation protocol. Engineered for global B2B procurement, product managers, and JDM structural design, our Yongkang manufacturing facility executes factory-direct conversion of raw SUS304/316 alloys and pure Titanium into retail vessels. The structural workflow initiates with high-tonnage metal forming ▸ utilizing 800-ton hydraulic tube hydroforming for tapered contours or multi-stage progressive deep drawing to establish custom container walls across a calibrated 0.20mm - 1.00mm thickness spectrum. This engineering data deployment balances physical weight with impact resistance, standardizing an ultra-lightweight spinning process thinned to a 0.20mm - 0.30mm range for premium thin-wall stainless steel vessels, a 0.40mm - 0.50mm baseline benchmark for standard commodity thickness, and a heavy-duty 0.60mm - 1.00mm armor specification engineered specifically for ultra-thick rugged outdoor stainless steel cup profiles. Thermodynamic isolation is accomplished within digitized conveyor-brazing lines running a strict 6-hour phased vacuuming curve down to 10⁻⁴ Pa, combined with 570°C lead-free glass frit fusion to guarantee California Prop 65 compliance. Surface integrity is secured through automated internal electrochemical passivation or 300°C+ cured sol-gel ceramic linings, while exterior aesthetics utilize 200°C - 220°C baked PFAS-free polyester coatings certified to survive 100+ commercial dishwasher cleaning cycles. This direct-to-foundry engineering framework bridges functional prototyping with bulk large-scale predictability.

Technical Blueprint Registry: #36749-V26

From Metallurgical Physics to B2B Asset Protection:

Industrial Sourcing Framework: Direct-to-Foundry Turnkey Execution

Ecoway Houseware aligns advanced metallurgical physics with industrialized B2B deployment. We bridge the gap between functional prototyping and large-scale manufacturing consistency, matching the exact Bill of Materials (BOM) & tolerance benchmarks of hydration product specifications. By eliminating third-party trading intermediaries, our in-house Yongkang facilities guarantee predictable cost scaling, verified product reliability, and intellectual property protection for private labels. If private mold budget is tight, we support immediate deployment via 100+ ODM ready-molds for $0 tooling validation first.

Intellectual Property Isolation: From strict JDM non-disclosure protocols (NDA) to secure 3D CAD modeling and custom CNC mold storage, proprietary shapes are isolated from the public marketplace.
Flexible Supply Optimization: Supporting scalable production volumes with customized DDP sea/air logistics, FBA barcode automation, and complete duty prepayment across North America, Europe, & Asia.

Verified Factory Process Standard

B2B Quick Answer: How Are Stainless Steel Water Bottles, Tumblers & Vacuum Flasks Made?

Industrial Drinkware Manufacturing Intelligence Summary

The B2B production workflow at Ecoway Houseware integrates 9 automated stages. The lifecycle initiates with high-tonnage metal forming ▸ utilizing Tube Hydroforming for contours (Stanley style) or Deep Drawing for seamless liner architectures (Yeti style), followed by automated necking, Triple-Wall Copper Plating, and robotic fiber laser welding. Thermodynamic isolation is completed inside specialized vacuum furnaces via 570°C lead-free high-temperature fusion. Finally, the vessels undergo internal electrochemical passivation, 200°C powder baking, and 100% automated infrared QC sorting.

Thermodynamic Engineering: The 6-Hour Phased Vacuum Protocol

The structural longevity of a vacuum insulated cup depends heavily on its thermodynamic heating curve. To execute the critical evacuation stage, Ecoway mandates a strict 6-hour phased vacuuming cycle. Unbalanced 4-hour direct-heating lines ▸ which fast-ramp straight to 500°C ▸ risk trapping trace gases. Our engineering protocol enforces multi-stage holding temperatures. This ensures complete molecular outgassing of metal pores before fusing the final 570°C Lead-Free glass frit, successfully preventing vacuum degradation constants and keeping defect rates below <0.1%.

Ecoway 6-Hour Phased Cycle
Thermal Profile: Multi-stage ramp-up with stabilization intervals.
Peak Sealing: 570°C via Lead-Free Glass Frit fusion.
Physical Result: Permanent 10⁻⁴ Pa high-vacuum state; absolute compliance with CA Prop 65 lead limits.
Commodity 4-Hour Direct Cycle
Thermal Profile: Single-stage linear heat spike to 500°C.
Peak Sealing: 500°C using lead solder alloys.
Physical Result: Trapped gas molecules causing vacuum decay to 10⁻² Pa; non-compliant with CA Prop 65 parameters.

VACUUM DEGREE: 10⁻⁴ Pa (High Vacuum State)
ENCAPSULATION: 570°C Lead-Free Frit Fusion
SYSTEM: Triple-Stage Turbo-Molecular Line

9-Step Stainless Steel Tumbler & Cup Manufacturing Process

Step 01. Concept Translation & Shell Forming Translating AI prompts, hand sketches, or reference samples into 3D CAD blueprints & SLA resin prototypes (3–7 days). Shaping outer & inner bodies via Hydroforming or Deep Drawing.
Step 02. Precision Necking & Threading Necking to exact diameters and rolling threads with ±0.05mm injection tolerance for a 100% leak-proof fit.
Step 03. Copper Shield Lining Applying an electro-plated copper shield to reduce radiant heat loss and boost thermal retention by 10%–15%.
Step 04. Automated Laser Welding Fusing outer shells and bottom covers using multi-axis robotic fiber laser cells.
Step 05. 6-Hour Vacuum Brazing Executing the 6-Hour Phased Vacuum Cycle down to 10⁻⁴ Pa with 570°C Lead-Free Glass Frit Sealing (CA Prop 65 safe).
Step 06. Electrochemical Passivation Internal electrolytic polishing and optional 300°C+ sol-gel ceramic inner coating for metallic-free flavor purity.
Step 07. Surface Polishing & Coating Mechanical pre-polishing followed by 200°C PFAS-free Powder Coating, PVD Plating, or 360° 3D UV Printing (ASTM D3359 5B dishwasher safe).
Step 08. Component Injection Molding Multi-cavity injection molding of BPA-Free Eastman Tritan™ hybrid lids, TPE overmolding, and silicone gaskets.
Step 09. Final Assembly, Packing & Comprehensive QA Cleanroom component assembly, 100% automated infrared vacuum testing (<0.1% defect rate), pneumatic leak checks, ISTA 1A drop-tested packaging, and DDP shipping fulfillment.

View Comprehensive 9-Step Engineering Deep Dive ↓

Request Technical DFM Audit & Tooling Cost Quotation

Submit technical production drawings (STEP, IGES, or CAD PDF) or AI concept sketches directly to the Yongkang engineering office. The engineering team delivers a factory-direct DFM feasibility report and cost sheet within 24 hours.

Contact Engineering → WhatsApp Sourcing →

Sourcing Specialist Note:

Understanding the stainless steel thermos flask manufacturing process helps brand owners optimize BOM costs. Choosing Hydroforming (Stanley style) vs. Deep Drawing (Yeti style) directly impacts tooling budgets and silhouette complexity. If custom tooling budget is limited, you can deploy via 100+ ODM ready-molds for $0 tooling cost validation first.

Official industrial manufacturing process chart for stainless steel vacuum insulated flasks and tumblers — Figure 1.1: Verified B2B production workflow for vacuum insulated metal vessels.

Forming Comparison: Yeti vs. Stanley

Metal Forming Technology Comparison Between Stanley and YETI Styles
Primary Tech	Target Style & Advantage
Hydroforming	Stanley/Owala Style: Complex ergonomic curves & car-cup bases.
Deep Drawing	YETI Style: 100% seamless rugged interior; handles thicker steel gauges.

Executive Summary: Lead-Free Standards for Metal Drinkware Production (TL;DR)

Developing hydration vessels requires precise engineering tolerances and verified metallurgical processing. At Ecoway Houseware, we execute thermodynamic optimization metrics for B2B brands, e-commerce sellers, and international retailers.

Material Allocation: Heavy-duty SUS304/316 Stainless Steel & Pure Grade 1 Titanium substrates.
Lead-Free Guarantee: Compliant with California Prop 65 & FDA parameters via 570°C high-temperature glass frit fusion isolation.
Forming Force Configurations: Hydroforming expansion configurations for tailored geometric contours & Deep Drawing for seamless interior boundaries.
QC Validation Protocols: Execution of AQL 2.5/4.0 benchmarks, ISTA Drop Testing matrix, and 100% inline thermal infrared verification (<0.1% defect rate).

Technical fabrication lines execute processing specifications equivalent to leading industry form factors:
Develop engineering alternatives for Stanley | Yeti | Hydro Flask | Owala.

For operational financial projection, review our structural OEM Cost Breakdown Hub.

The Engineering Protocol: Technical Processes for Vacuum Insulated Thermos Mugs & Coffee Cups

Engineering a hydration vessel requires precise control of metallurgical physics and heavy-tonnage hydraulic machinery. Ecoway Houseware operates a unified, zero-subcontracting manufacturing protocol. From 0.90mm heavy-duty deep drawing execution to 10⁻⁴ Pa high-vacuum brazing curves, this step-by-step documentation details active industrial standards required to transform raw SUS304/316 medical-grade alloys into stable, retail-ready brand assets.

01. MATERIAL SELECTION & SHELL FORMING

Production starts with verified raw material substrates or customer design inputs. Whether translating AI concept prompts, 2D hand sketches, or physical reference samples into 3D CAD blueprints (.STP), our local fabrication facility sources audited metallurgical grades to align with structural requirements. All inputs are verified against our Master Material Standards & Compliance Hub.

SUS 304 (18/8): The standard metallurgical specification for food-grade safety and oxidation resistance.
SUS 316 (18/10 Marine Grade): Elevated molybdenum integration providing acid resistance for complex organic liquid compounds.
Pure Titanium (Grade 1): High-purity aerospace-grade metallic structure, delivering a 45% weight reduction relative to steel with zero flavor carryover.

Steel Gauge (Thickness) Specifications Matrix

Steel Gauge and Wall Thickness Interval Specifications
Wall Classification	Thickness Interval
Ultra-Lightweight Thin Inner Wall	0.20mm - 0.30mm
Regular Commodity Standard Thickness	0.40mm - 0.50mm
Ecoway Heavy-Duty Capability	0.60mm - 1.00mm (Maximum dent resistance)

Converting flat steel discs or cylindrical welded pipes into double-wall insulated architectures requires high-tonnage precision tooling configured to one of two structural mechanical workflows:

METHOD A: Deep Drawing (The Seamless Interior Process)

A flat stainless steel disc is subjected to progressive punching stages by a hydraulic press line. This creates a 100% Seamless Interior, eliminating bacterial accumulation zones—a baseline parameter for YETI-style vacuum vessels.

🛠️ DFM Engineering Note:

To execute structural lightweighting without inducing vacuum chamber implosion, we apply CNC Spinning technology to thin the inner liner wall to a precision threshold of 0.20mm - 0.30mm, reducing mass by 30% while securing structural integrity constants.

Industrial Deep Drawing process: transforming a flat steel disc into a 100% seamless cup body at Ecoway factory

METHOD B: Tube Hydroforming (High-Pressure Fluid Expansion)

A welded steel cylinder is secured within a hardened die block and expanded outward via high-pressure hydraulic fluid. This enables precise geometric execution for complex contours and car-cup compatible tapered bases (Stanley/Owala style).

Tube Hydroforming technology using high-pressure water expansion for ergonomic bottle silhouettes

Technical diagram of SUS304 and SUS316 steel thickness gauge testing at Ecoway factory

02. PRECISION NECKING & THREADING

Precision Necking & Threading Roll

The container mouth is compressed via rotary necking machinery to strict millimeter tolerances before screw threads are rolled. This enforces a 100% leak-proof interface with ±0.05mm injection tolerance lid assemblies, eliminating thread slippage and alignment variance.

Factory Action: Forming & Manufacturing In Progress

⚙️ Industry Technology Matrix

Drinkware Manufacturing Industry Technology Matrix
Criteria	Stanley Form Factor	Yeti Form Factor	Hydro Flask Form Factor
Primary Tech	Tube Hydroforming	Deep Drawing	Lightweight Hydroforming
Design Priority	Complex Geometric Curves	100% Seamless Interior	Lightweight Portability Matrix
Steel Gauge Constant	0.5mm	0.6mm - 0.65mm	0.4mm

03. THERMAL RADIATION COPPER LINING

Advanced Copper Shielding Deployment

Prior to multi-wall assembly synchronization, the exterior surface of the inner steel shell undergoes automated electro-plating to deploy a copper reflection layer. This metallic shield functions as a thermodynamic mirror, reflecting infrared radiation and reducing overall emissivity (ε). The integrated copper lining layer directly induces a 10% to 15% increase in total thermal retention performance. Implementing this configuration carries a calculated unit cost variable of $0.10 to $0.15 USD per vessel, evaluated dynamically within our B2B Manufacturing Cost Breakdown Hub.

ENGINEERING PRINCIPLE: THE STEFAN-BOLTZMANN LAW

The rate of radiant heat transfer is minimized through high-temperature vacuum brazing according to the governing relation:

P = εσA(T⁴ − T₄⁴)

[ ε = Emissivity | σ = Stefan-Boltzmann Constant | A = Radiating Surface Area ]

Result: The electro-plated copper barrier reduces radiant energy dissipation by more than 95% relative to non-plated alternative vessels.
04. AUTOMATED ROBOTIC LASER WELDING

Robotic Fiber Laser Seam Fusion

Ecoway coordinates an automated multi-axis robotic fiber laser cell to fuse container mouth seams and bottom enclosure plates. Precision laser alignment maintains a narrow heat-affected zone (HAZ), securing joint tolerances and providing structural resistance to mechanical shock testing. This airtight seal provides the required baseline structural framework for high-vacuum longevity, mitigating micro-porosity failure variables across large-scale production cycles.
05. HIGH-TEMPERATURE VACUUM BRAZING

The 6-Hour Phased Vacuum Extraction

Fused components are routed through a multi-zone vacuum furnace operating a strict 6-hour phased vacuuming curve down to a 10⁻⁴ Pa high-vacuum state. Gradual thermal holding periods secure outgassing of trace gases trapped within the alloy grain boundaries. To form a stable hermetic seal, Ecoway executes a 570°C Lead-Free Glass Frit Sealing process. Fusing microscopic glass particles establishes a stable, non-toxic seal that eliminates California Prop 65 heavy metal litigation risks. This environmental encapsulation option carries a baseline project cost delta of $0.15 to $0.25 USD per unit, verified within the OEM Cup Wholesale Cost Estimator.

Read our 100% Lead-Free Guarantee →
06. INTERNAL ELECTROLYSIS PASSIVATION & CERAMIC COATING

Internal Electrolysis Passivation & Sol-Gel Ceramic Lining

The interior liner surface undergoes electrolysis passivation to remove free iron particles, establishing a chromium-rich passive safety film that resists organic acid corrosion. For specialty beverage and craft brewing specifications demanding flavor isolation, we apply a non-metallic Sol-Gel Ceramic Coating Layer uniformly via automated high-pressure spray atomization. Following thermal curing processing exceeding 300°C, the cross-linked coating merges with the SUS304 substrate to resist staining and prevent metallic flavor carryover. This parameter carries a calculated cost delta of $0.35 to $0.80 USD per unit based on geometry boundaries. For cross-linking specifications, consult our Ceramic Coating Technology Guide.

⚠️ Quality Control: Anti-Rust Validation

Omitting passivation accelerates oxidation pathways. Ecoway validates material structural resilience by subjecting batch samples to standard ASTM B117 / ISO 9227 Salt Spray Testing constants to certify corrosion resistance.

07. EXTERIOR POLISHING & SURFACE COATING

This phase processes raw structural cores into customized retail assets utilizing high-adhesion finishing lines. Explore all custom branding solutions.

Exterior Finish Classification and Performance Profile Specs
Exterior Finish Classification	Performance Profile & Aesthetic Specification
Polishing Pre-Treatment	Baseline mechanical abrasive processing. Configured in Mirror Polish or Satin/Matte modalities to remove surface micro-imperfections prior to pigment application.
Spray Painting	Liquid fluid coating application. Achieves high gloss indexes and standard Pantone color matching parameters for commercial product lines.
Powder Coating	High-temperature cured (200°C - 220°C) cross-linked polyester resin layer. Yields a textured surface with scratch resistance, securing heavy-metal free and 100% PFAS-free compliance.
Rubber Coating	Tactile soft-touch finish. Imparts a slip-resistant polymer outer layer to eliminate surface condensation movement while increasing unit perceived value.
PVD Coating	Physical Vapor Deposition molecular bonding. Formulates ultra-hard decorative metallic compound coatings including Gold, Rose Gold, and spectrum options.

Diverse exterior surface finishes: Powder coating, PVD plating, and rubber coating options for wholesale stainless steel tumblers

Precision Logo Integration Equipment

To ensure corporate identity metrics withstand extended wear environments, we deploy synchronized branding equipment:

Laser Engraving: Multi-axis fiber laser systems vaporize surface coatings to expose the steel substrate to sub-millimeter precision tolerances. Permanent and abrasion-resistant.
Silk-screen Printing: Linear mechanical ink transfer optimized for bulk manufacturing volume efficiency with exact Pantone index reproduction.
3D UV Printing: Direct digital inkjet deployment supporting complete color gradients and tactile multi-layer embossed structural profiles.

TESTING STANDARD: The "100 Cycle" Dishwasher Safe Check

Our exterior PFAS-free powder resin formulas are processed through high-temperature 200°C - 220°C curing zones to pass rigid ASTM D3359 Grade 5B cross-hatch tape adhesion tests and withstand 100+ caustic commercial wash testing cycles without displaying delamination or paint loss.

Validation of 100-cycle dishwasher safe test for powder-coated and branded stainless steel drinkware

08. COMPONENT INJECTION MOLDING

Accessories, closures, and sealing interfaces conform to strict physical-mechanical metrics with ±0.05mm injection tolerance to prevent thread stripping and secure vacuum integrity constants.

Eastman Tritan™ Copolyester Closure Standardization

Ecoway mandates 100% BPA-free Eastman Tritan™ Copolyester for transparent lid structures, sliders, and straw mechanisms. Unlike generic AS/PS polymers susceptible to environmental stress cracking and odor retention under high-temperature washing, Tritan maintains clear optical properties and impact performance. For integrated soft components, we utilize dual-injection overmolding equipment to fuse elastic TPE directly to structural PP frameworks without chemical adhesives, securing raw purity standards.
09. FINAL ASSEMBLY, COMPREHENSIVE QA & LOGISTICS
Final consolidation protocols focus on cleanroom component integration, multi-factor safety validation, and protective containment to secure large-scale manufacturing consistency constants.

100% Comprehensive Inspection Protocols

Before packaging execution, every unit routes through an integrated quality checkpoint array:
- Pneumatic Seal Testing: High-pressure pneumatic lines test closure torque and body weld boundaries to isolate liquid leakage indicators.
- Automated Infrared Thermal Audit: Vessels travel through a hot-air blast tunnel monitored by digital infrared thermal cameras. Units demonstrating thermal conductivity to the outer shell are instantly rejected, preserving a strict <0.1% vacuum degradation rate threshold.
- Adhesion Cross-Hatch Testing: Production batch checks execute grid cuts with ASTM D3359 5B cross-hatch tape validation systems to confirm coating bond durability.
- MIL-STD-105E Final AQL 2.5/4.0: Rigid final inspection audits color variation tolerances (Delta E limits) and package structural layout configuration.
🌿 ISTA-Tested Sustainable Fulfillment & DDP Logistics

Ecoway coordinates plastic-free logistics profiles using FSC-certified honeycomb protective sleeves and K=K double-wall corrugated fiberboard. Export master cartons are engineered to fulfill ISTA 1A / 3A Drop Testing specifications (surviving 10 free-fall drops from 30 inches), preventing maritime transport transit degradation. Our integrated logistics department manages complete DDP Logistics solutions across USA, EU, UK, LATAM, and Australian corridors, executing import customs processing and prepaid duty structures directly to your destination dock or Amazon FBA hub.

Explore All Packaging & Branding Specifications →

24oz Vacuum Bottle DFM & Cost Engine

Industrial pricing model for 24oz (710ml) vessels. Estimate structural mold CapEx and DDP unit costs configured to current active manufacturing cost indexes.

1. Tooling Expenditure (CapEx)

Forming Method (24oz Base)

Lid System Engineering

2. Unit BOM & Performance (OpEx)

Metallurgy Selection (24oz Scale)

Technical Enhancements & Options

Inner Copper Shield (+10% to 15% Thermal Retention) 570°C Lead-Free Glass Frit Vacuum Sealing (CA Prop 65 Compliance) Sol-Gel Metallic-Free Ceramic Lining (300°C+ Baked Protection)

3. Scale & Logistics (DDP)

Target Volume: 10,000 Units

Landed Logistics (DDP 24oz unit)

Tooling Investment

Configuring...

24oz DDP Unit Price (Est.)

Configuring...

$0.00 /pc

Total Project Landing Cost $0

Data Transparency: Cost structures and parameters mapped dynamically via our OEM Cost Amortization Hub. Surface lining values verified in accordance with the Ceramic Coating Technology Guide.

*Prices are estimates based on current SUS304 steel indexes. Final exact quotes require 3D CAD (.STP) engineering review.

FAQ: Metal Bottle Manufacturing Processes & Technology

Engineering insights for B2B procurement, product developers, and brand owners.

Process Engineering Summary (TL;DR)

Summary for Procurement: Ecoway utilizes 800-ton Hydroforming for contoured silhouettes (Stanley/Owala style) and Deep Drawing for seamless interiors (Yeti style). Production parameters maintain a <0.1% vacuum failure rate via robotic laser welding and 570°C Lead-Free Glass Frit Sealing. Vessels utilize 0.20mm - 0.30mm CNC spinning for weight reduction and 100% BPA-Free Eastman Tritan™ for lid structures.

1. Metal Forming & Welding

What is the technical difference between manufacturing a Yeti tumbler versus a Stanley cup?

Forming Technology
The difference is the forming technique. Yeti-style tumblers utilize Deep Drawing to establish a straight-walled interior with a thickness range of 0.60mm - 1.00mm. Stanley-style vessels require 800-ton Tube Hydroforming to achieve tapered bases compatible with automotive cup holders.
How do you prevent ultra-thin 0.20mm inner walls from collapsing during vacuum brazing?

Structural Integrity
To prevent wall collapse or cavity implosion during high-vacuum processing, manufacturing protocols combine CNC spinning with programmable gradual heating. Spinning thins the midpoint of the liner wall while maintaining base and neck gauge constants, while gradual thermal staging balances pressure distributions during the 10⁻⁴ Pa evacuation.
Why do pure titanium cups often have black weld marks, and how do you fix it?

Metallurgy Welding
Titanium reacts with oxygen at thermal fusion thresholds, causing structural embrittlement and surface oxidation markings. Laser welding lines operate inside an argon gas shielded chamber to isolate oxygen and preserve metallurgical properties along the seam boundary.

2. Insulation & Material Safety

How does Ecoway ensure your stainless steel cups are 100% Lead-Free?

Prop 65 Compliance
Manufacturing replaces heavy metal alloys with 570°C high-temperature glass frit vacuum sealing. Thermal fusion of microscopic glass particles establishes a hermetic seal compliant with California Prop 65 and FDA limits.
How does Ecoway prevent vacuum loss in mass production?

Quality Assurance
Production lines deploy inline automated infrared thermal audit tunnels. Heated air is directed into vessels; units exhibiting thermal conductivity to the outer shell are rejected by infrared sensors, limiting vacuum degradation to a <0.1% threshold.
How do I verify if a factory uses genuine 304/316 steel instead of cheap 201 steel?

PMI Spectrometry
Foundries verify composition constants via Positive Material Identification (PMI) spectrometry reports. This testing authenticates specified Chromium (18%) and Nickel (8-10%) percentages, ensuring production isolation from SUS201 specifications.
How do you apply the Ceramic Inner Coating for barista-grade mugs?

Lining Solutions
Automated high-pressure spray atomization delivers a metallic-free Sol-Gel Ceramic Layer. Thermal curing at parameters exceeding 300°C drives cross-linking with the SUS304 substrate, forming an inert boundary layer that prevents flavor crossover and surface staining.

3. Components, Tooling & Finishes

What makes your lid materials superior to standard plastics?

BPA-Free Polymer
Lid structures utilize Eastman Tritan™ Copolyester with ±0.05mm injection tolerances to provide impact resistance and chemical purity free from BPA/BPS components. The material preserves clarity after standard commercial washing cycles. Integrated with TPE overmolding, the closure sub-assembly maintains structural seal constants without cracking.
What is the "100-Cycle" Dishwasher Safe Test for powder coating?

Coatings Adhesion
To evaluate surface adhesion constants, PFAS-free polyester coatings are cured within a 200°C - 220°C thermal tunnel. Batch samples undergo validation through 100 high-temperature commercial dishwasher testing cycles and ASTM D3359 Grade 5B cross-hatch tape tests to verify resistance to paint delamination or color fading.
How do I verify if my manufacturer uses RCS certified recycled stainless steel?

Sustainability Audit
Procurement verification requires an RCS (Recycled Claim Standard) Transaction Certificate (TC) linked to the specific production lot. Certified foundries issue this documentation to authenticate statements regarding recycled material content.
What is the typical lead time for new molds, prototypes, and mass production?

Lead Times & Prototyping
Whether you start from AI concept prompts, 2D hand sketches, or reference samples, we deliver 3D CAD blueprints in 48 hours and SLA 3D printed functional resin prototypes in 3 - 7 days. Custom CNC steel tooling fabrication spans 30 - 45 days. Mass manufacturing requires 35 - 45 days. *Note: If custom tooling budget or timeline is tight, choose from our 100+ ODM ready-molds for $0 tooling cost fast validation.*

Launch Your Proprietary Drinkware Portfolio

Connect directly with the Yongkang technical foundry engineering desk to initiate a comprehensive DFM blueprint review, finalize private label volume estimates, or map structural tooling CapEx variables.

Van Huang

✔ Verified Manufacturing Expert

As Head of Marketing and JDM Engineering at Ecoway Houseware Limited, Van oversees the verification of engineering datasets with 12+ years of local fabrication flooring operational oversight. To brand owners facing high CapEx or tight timelines, Van's engineering team translates early AI sketches into 3D CAD/DFM blueprints and provides flexible ODM-to-OEM scaling strategies. He acts as the senior authoritative review signatory on this page, specializing heavily in High-Vacuum Thermodynamics constants, Hydroforming DFM technical variables, Stefan-Boltzmann Law Radiant Heat Optimization curves, ASTM B117 / ISO 9227 Anti-Corrosion Validation Protocols, JDM Engineering Workflow Integration metrics, China Supplier Infrastructure Verification diagnostics, and B2B OEM Hydration Procurement Frameworks.

Continue Your Product Development

Analyze our technical metallurgy documentation, tooling amortization calculators, and factory capacity profiles to complete your sourcing roadmap.
